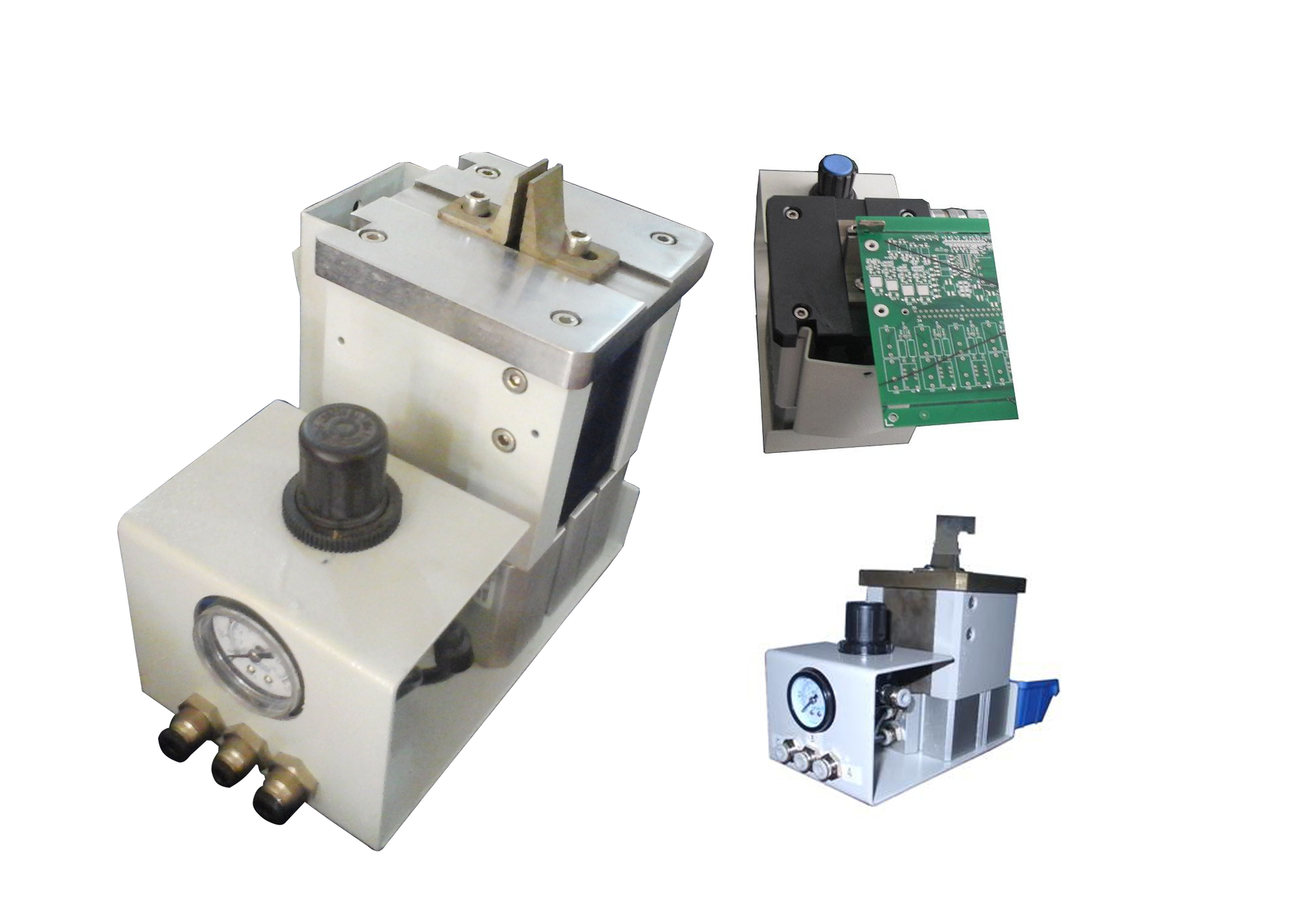

PCB Nibbler With Pneumatic Control , Depanaling Irregularly Shaped PCB
Printed Circuit Board Nibbler Machine Specifications:
| Action stroke times | 12 times / min |
| Working dry air pressure | 0.50-0.70 Mpa |
| Slide stroke | 2 mm |
| PCB Nibbler Machine Weight | 2 kg |
| PCB Nibbler Machine Size | 280x105x185mm |
Printed Circuit Board Nibbler Machine Features:
1, all pneumatic control, easy to operate
2, suitable for slitting various PCB connection points
3, hook blade work, hook blade shape can be customized
4, convenience for replacing hook blade
5, hook blade for "T" type or "L" type blade
6, small size, does not damage the part of the PCB and PCB substrate
Safe operation with PCB nibbler CWV-LT
The PCB is slipped with its milled groove over the blade and is placed onto the matrix. The off-cut is pulled under the blade. When the foot switch is pressed, the off-cut is punched out and the waste material is collected inside the machine.
Application:
