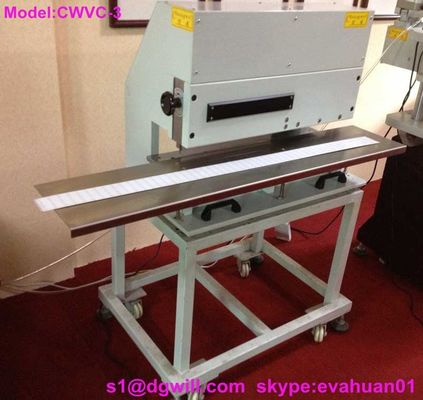

V-cut Pcb Separator Separation Pre-scored PCB Without MicrostressSpecifications:
| Model | CWVC - 3 |
| Max. PCB separation length | unlimited |
| PCB cutting thickness | 0.3 - 3.5mm |
| Voltage and Power | 110V / 220V -- 10W |
| Working air pressure | 0.5 - 0.7 Mpa |
| PCB depaneling speed | due to operator skilled level |
| PCB separator machine size | 780 x 500 x 620 mm |
| PCB separator machine weight | 185Kg |
Features:
1. Separates boards up to 2.0 mm thick (with minimum 0.5 mm scoring depth)
2 . Can be used with aluminum, FR4, CEM3 and other substrates, including substrates with metal inner layers
3 . Separates PCBs with components located up to 0.5 mm from the score line
4 . Safe for use with flexible and thin PCBs
5 . Smooth, quiet pneumatic-powered unit with foot-pedal activation
6 . Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion
7 . Boards are separated without bending or breaking
8 . No safety risks to operator since there is never a gap greater than 4 mm between the upper and lower blades
9 . Adjust blades to PCB score line using rotary knob
Video
http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
http://v.youku.com/v_show/id_XNTkxMTU0MDAw.html

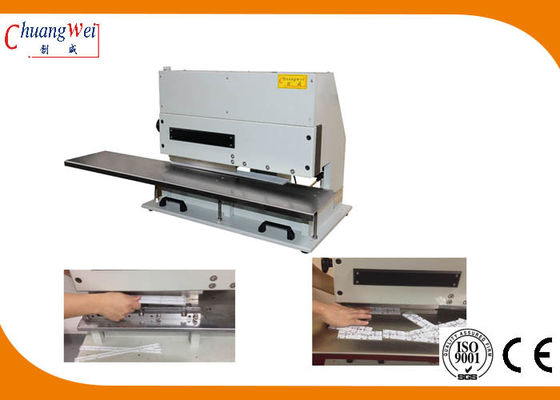

Chuangwei PCB depaneling machine
From 2004 we started to development,manufacture , sale , service for PCB depaneling machine , until now , we have produced different kind PCB depaneling machine type for manual , motor-driven , pneumatic-driven , mold and die punching,milling cutter router etc .
You can depend on your company's condition and choose the most suitable one .
Also We can manufacture PCB depaneling machine base your actual requires .
PCB depaneling machine mainly applies to depanel various shape , length and thickness Printed Circuit Board(PCB) which include Rigid PCB , Flexible PCB(FPC) and Rigid-flex PCB etc . For example electronic and digital products FR4 PCB , FR6 PCB , Aluminium PCB , Copper PCB , LED strips , LED tubes PCB , Solar energy PCB and different FPC etc .
Any interest please contact us freely .
