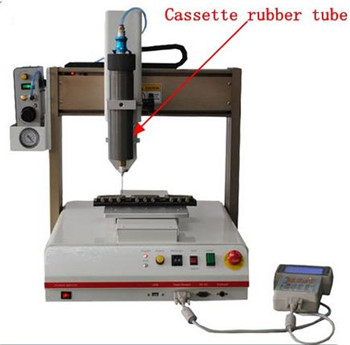

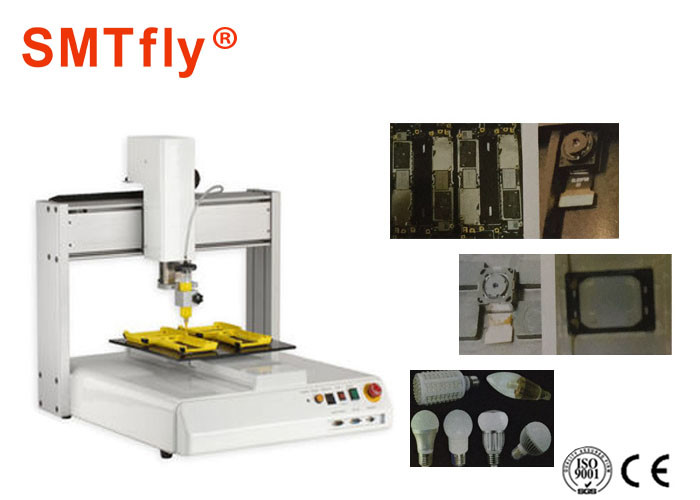

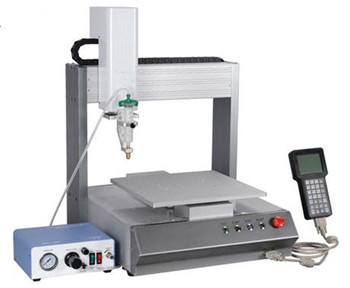

3 Axis Single Working Automatic Dispensing Machine Optional Dispensing Path Details:
2. With a draw point, line, surface, arc, circle. Irregular curves and three-axis continuous interpolation functions such linkage;
| X/Y/Z working area (mm) | 400/400/100 | ||||
| Load worktable | 10.0kg / 5.0kg | ||||
| Speed PTP X&Y/Z (mm/sec) | 0.1~800/500 | ||||
| Repeatability | +/- 0.01mm / axis | ||||
| Resolution | 0.01mm/axis | ||||
| Data memory | 100 programs, 4000 points/program | ||||
| Data storage | CF card | ||||
| Program Display | Teach pendant LCD | ||||
| Operation system | PTP (point to point) & CP (continuous path) | ||||
| Interpolation linear/circular | 3 axis | ||||
| Program method | Teach pendant | ||||
| I/O signals | 8 inputs / 8 outputs | ||||
| External interface | RS232 | ||||
| Power supply | AC 90~260V 300W | ||||
| Operating temperature | 10~40°C | ||||
| Motor system | Micro stepping motor | ||||
Why us
1. Engineers available to service machinery overseas.
Engineers are available to be sent to foreign countries to do machinery training and offer technical support.
2. One year warranty for the machines except for accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and overseas clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3.Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm, and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high-quality machinery.
As the largest manufactory in South China, we have 12 years of experience on PCB separator machines and soldering machines. PCB router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
